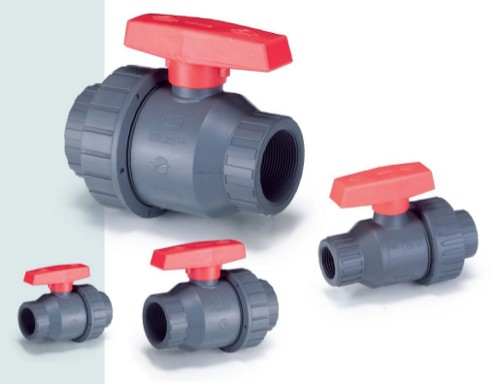

True Union Safety Block Ball Valve With Mounting Pads CH Series

Descripción Técnica

CS100 Sin Rosca / CS200 Roscado
Material: UPVC, PP
Medidas: 1/2" a 2"
Standard: JIS,ANSI,DIN

Solicitar cotización

Medidas Standard ANSI

Size
D1
Socket
Thread
D2
L
P
H
A
Press
1/2"
0.59
0.840
NPT-1/2"
2.09
3.82
0.875
2.01
2.60
222
3/4"
0.71
1.050
NPT-3/4"
2.52
4.37
1.000
2.56
2.95
222
1"
0.98
1.315
NPT-1"
2.87
4.80
1.125
2.80
3.35
222
1 1/4"
1.54
1.660
NPT-1 1/4"
3.86
6.22
1.250
3.39
4.29
222
1 1/2"
1.54
1.900
NPT-1 1/2"
3.86
6.22
1.375
3.39
4.29
222
2"
1.89
2.375
NPT-2"
4.61
6.81
1.500
4.09
5.29
222
