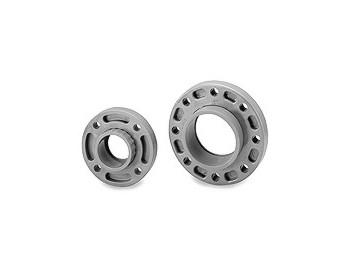

Bridas de PVC Locas Schedule 80 Fittings. UPVC - CPVC

Descripción Técnica

Van Stone Flange - Slip
Material: UPVC, CPVC
Medidas NTP: 2 1/2" a 14"
Medidas ISO: 75 mm a 355 mm
Norma: ANSI, DIN

Standard: ANSI SCH80

Solicitar cotización

Medidas Standard ANSI

Size
D1
D2
D3
H
T
n
2 1/2"
3-19/32
5-1/2
6-31/32
1-21/32
15/16
4
3"
4-7/32
6.0
7-1/2
2-1/2
1.0
4
4"
5-1/4
7-1/2
9.0
2-1/2
13/32
8
6"
7-9/16
9-1/2
11-3/18
3-9/32
11/4
8
8"
9-3/8
11-3/4
13-1/2
4-5/8
1-13/32
8
10"
11-3/4
14-1/4
16.0
5-29/32
1-21/32
12
12"
13-11/16
17.0
18-15/18
7-17/32
1-21/32
12
14"
14-9/16
18-3/4
20-31/32
-
1-1/8
12
