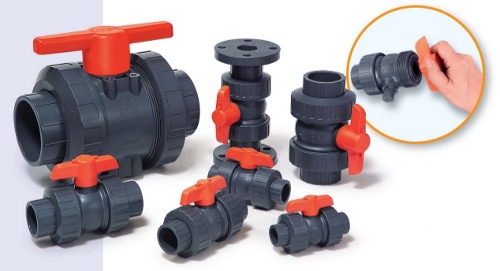

Safety Block True Union Ball Valve (New) CA Series

Descripción Técnica

CA100 Sin Rosca / CA200 Roscado / CA300 Flanged
Material: UPVC, PP, CPVC, PVDF
Medidas: 1/2" a 4"
Standard: JIS,ANSI,DIN

Solicitar cotización

Medidas Standard ANSI

Size
D1
D2
D3
P
A
T
H
B
Press
1/2"
0.563
2.375
3.500
0.875
3.03
0.591
2.17
2.17
222
3/4"
0.756
2.750
3.875
1.000
3.35
0.630
2.36
2.56
222
1"
1.016
3.125
4.250
1.125
3.86
0.669
2.80
2.87
222
1 1/4"
1.496
3.500
4.625
1.250
4.29
0.669
2.95
3.19
222
1 1/2"
1.496
3.875
5.000
1.375
4.65
0.709
3.74
3.86
222
2"
1.886
4.750
6.000
1.500
5.39
0.787
4.09
4.72
222
2 1/2"
2.560
5.500
7.000
1.750
7.48
0.787
5.51
5.90
148
3"
3.070
6.000
7.500
1.875
9.06
0.90
6.50
7.24
148
4"
4.01
7.500
9.000
2.250
10.79
0.90
6.77
10.31
148
