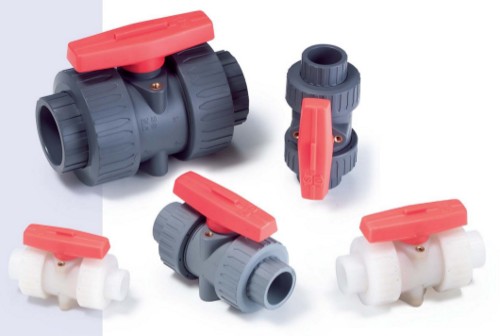

True Union Safety Block Ball Valve With Mounting Pads CH Series

Descripción Técnica

CH100 Sin Rosca / CH200 Roscado / CH300 Flanged
Material: UPVC, PP, CPVC, PVDF
Medidas: 1/2" a 4"
Standard: JIS,ANSI,DIN

Solicitar cotización

Medidas Standard ANSI

Size
D1
D2
D3
P
H
A
B
T
K
E
S
S1
Press
1/2"
0.59
2.375
3.500
0.875
2.00
3.25
2.10
0.59
1.22
-
3/16"-24G
4
148
3/4"
0.748
2.750
3.875
1.000
2.48
3.98
2.48
0.59
1.45
-
1/4"-20G
4
148
1"
0.98
3.125
4.250
1.125
2.83
4.40
2.84
0.66
1.57
-
1/4"-20G
4
148
1 1/4"
1.496
3.500
4.625
1.125
3.38
4.78
3.82
0.66
2.16
-
5/16"-18G
4
148
1 1/2"
1.496
3.875
5.000
1.375
3.38
4.78
3.82
0.75
2.16
-
5/16"-18G
4
148
2"
1.89
4.750
6.000
1.500
3.93
5.88
4.68
0.83
2.67
-
5/16"-18G
4
148
2 1/2"
2.560
5.500
7.000
1.750
5.51
7.48
5.91
0.83
3.15
1.61
5/16"-18G
8
100
3"
3.07
6.000
7.500
1.875
6.50
9.06
7.24
0.866
3.15
1.61
5/16"-18G
8
100
4"
4.01
7.500
9.000
2.250
6.77
10.97
10.37
0.866
4.76
1.97
5/16"-18G
8
100
