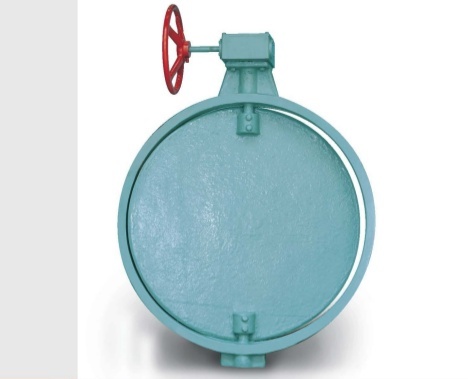

Super Large Sized Butterfly Valve BS Series

Descripción Técnica

BS300
Material: FCD45, SS41, SUS304, SUS316, FC25+FRP, SS41+FRP
Medidas: 28" a 60"
Standard: JIS,ANSI,DIN

Solicitar cotización

Medidas Standard ANSI

Size
D1
D2
D3
N
Øe
H1
H2
H3
I
K
D4
28"
26.77
34.00
36.24
28
1.37
20.95
23.23
4.72
48.90
12.04
18.11
32"
30.71
38.50
41.06
28
1.62
23.11
24.41
4.72
52.24
12.04
18.11
34"
32.28
40.50
43.06
32
1.62
24.02
25.39
4.72
54.14
12.04
18.11
36"
34.25
42.75
45.39
32
1.62
26.06
27.76
4.72
58.55
12.04
18.11
40"
38.19
-
48.23
-
-
38.43
29.53
4.72
62.68
12.04
18.11
48"
46.85
-
57.05
-
-
34.33
34.65
4.72
73.70
12.04
18.11
54"
52.36
-
63.58
-
-
38.19
41.14
5.24
84.57
13.26
18.11
60"
58.27
-
69.88
-
-
42.13
45.08
5.24
92.45
13.26
18.11
