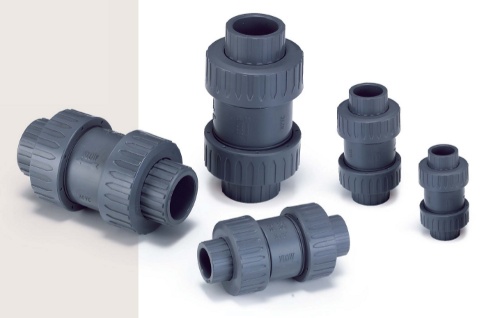

True Union Ball Check Valve (Vertinal Type) JX Series

Descripción Técnica

JX100 Sin Rosca / JX200 Roscado
Material: UPVC, PP, CPVC, PVDF
Medidas: 1/2" a 4"
Standard: JIS,ANSI,DIN

Solicitar cotización

Medidas Standard ANSI

Size
D1
d - Socket
d - Thread
L - Socket
L - Thread
B
1/2"
0.598
0.848
NPT
3.976
3.976
2.016
3/4"
0.771
1.058
NPT
4.527
4.527
2.492
1"
0.984
1.325
NPT
5.345
5.345
2.874
1 1/4"
1.259
1.670
NPT
6.732
6.732
3.842
1 1/2"
1.574
1.912
NPT
6.732
6.732
3.842
2"
1.968
2.387
NPT
7.677
7.677
4.744
2 1/2"
2.46
2.889
NPT
8.86
8.86
5.9
3"
3
3.515
NPT
10.71
10.71
7.24
4"
3.94
4.518
NPT
14.37
14.37
7.83
