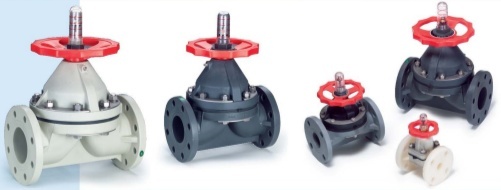

Diaphragm Valve - Flanged Type DV Series

Descripción Técnica

DF300
Material: UPVC, PP, CPVC, PPG, PVDF
Medidas: 1/2" a 10"
Standard: JIS,ANSI,DIN

Solicitar cotización

Medidas Standard ANSI

Size
D1
D2
D3
D4
D5
L
T
H
I
1/2"
0.63
2.38
3.50
2.32x2.09
3.70
4.25
0.59
3.98
5.51
3/4"
0.79
2.76
3.86
2.80x2.48
3.70
5.90
0.63
4.17
5.98
1"
0.98
3.13
4.25
31.5x2.60
3.70
5.90
0.63
4.45
6.22
1 1/2"
1.61
3.88
5.00
4.96
5.79
6.95
0.67
5.24
7.60
2"
2.05
4.74
5.98
5.83
5.79
7.95
0.67
5.71
8.27
2 1/2"
2.68
5.49
7.01
7.48
7.95
9.85
0.87
7.76
10.87
3"
3.07
6.00
7.52
8.46
7.95
10.40
0.75
8.50
11.54
4"
3.94
7.50
9.02
10.04
9.49
12.95
0.91
10.28
14.57
5"
4.92
8.50
10.00
12.60
10.79
16.14
0.94
12.13
16.22
6"
5.83
9.51
10.98
15.16
15.55
18.90
1.18
13.15
18.54
8"
7.80
11.75
13.50
16.93
15.55
22.44
1.26
16.40
24.61
10"
9.76
14.25
15.98
21.26
21.85
26.77
1.26
20.08
29.53
