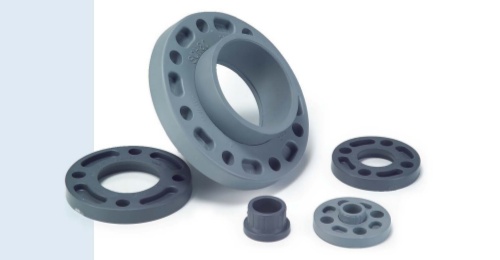

Van Stone Flange VS Series

Descripción Técnica

TS100
Material: UPVC, CPVC, PP
Medidas: 1/2" a 12"
Standard: JIS, ANSI

Solicitar cotización

Medidas Standard ANSI

Size
D1
D2
D3
H
T
l
n
ø
1/2"
1-1/32
2-3/8
3-1/2
1.0
1/2
2-1/32
4
9/16
3/4"
1-7/18
2-3/4
3-7/8
1-1/8
17/32
1-7/32
4
9/16
1"
1-3/4
3-1/8
4-1/4
1-9/32
21/32
1-9/32
4
19/32
1 1/4"
2-3/32
3-1/2
4-5/8
1-13/32
21/32
2-3/32
4
1/2
1 1/2"
2-3/8
3-7/8
4-31/32
1-1/2
23/32
3/4
4
5/6
2"
2-7/8
4-3/4
6.0
1-21/32
3/4
2-5/32
4
5/6
2 1/2"
3-19/32
5-1/2
6-31/32
1-21/32
15/16
1-3/8
4
5/6
3"
4-7/32
6.0
7-1/2
2-1/2
1.0
1-13/32
4
23/32
4"
5-1/4
7-1/2
9.0
2-1/2
13/32
1-13/32
8
23/32
6"
7-9/16
9-1/2
11-3/18
3-9/32
11/4
2-1/2
8
7/8
8"
9-3/8
11-3/4
13-1/2
4-5/8
1-13/32
3-1/18
8
7/8
10"
11-3/4
14-1/4
16.0
5-29/32
1-21/32
4-27/32
12
15/16
12"
13-11/16
17.0
18-15/18
7-17/32
1-21/32
6-1/2
12
1.0
14"
14-9/16
18-3/4
20-31/32
-
1-1/8
-
12
1-1/16
16"
16-9/16
21-1/4
23-1/2
-
1-1/8
-
16
1-1/8
18"
18-1/2
22-9/16
25
-
1-1/8
-
16
1-1/4
20"
20-1/2
25
27-1/2
-
1-1/8
-
20
1-1/4
24"
24-13/16
29-1/2
32
-
1-1/8
-
20
1-3/8
