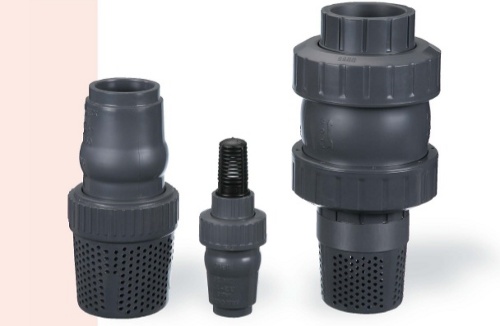

Ball Foot Valve (Vertical Type) JF Series

Descripción Técnica

JF100 Sin Rosca / JF200 Roscado / JF300 Flanged
Material: UPVC, PP, PPG, CPVC, PVDF
Medidas: 1/2" a 10"
Standard: JIS,ANSI,DIN

Solicitar cotización

Medidas Standard ANSI

Size
D1
Screw
Socket
D2
D3
n
øe
L - Flange
T
1/2"
0.59
NPT
0.84
2.375
3.500
4
0.63
6.02
0.62
3/4"
0.79
NPT
1.05
2.750
3.785
4
0.63
7.20
0.62
1"
1.02
NPT
1.32
3.125
4.250
4
0.63
7.95
0.62
1 1/4"
1.42
NPT
1.67
3.500
4.625
4
0.63
9.96
0.70
1 1/2"
1.42
NPT
1.91
3.875
5.000
4
0.63
9.96
0.70
2"
1.58
NPT
2.38
4.750
6.000
4
0.75
11.14
0.82
2 1/2"
2.56
NPT
2.88
5.500
7.000
4
0.75
13.18
0.78
3"
3.15
NPT
3.51
6.000
7.500
4
0.75
15.74
0.90
4"
3.94
NPT
4.51
7.500
9.000
8
0.75
20.47
0.90
6"
-
-
-
9.500
11.000
8
0.88
31.10
0.90
10"
-
-
-
14.250
16.000
12
1.00
46.85
0.98
