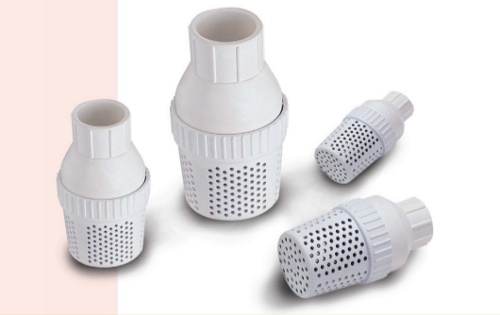

In - Line Spring Foot Valve JD Series

Descripción Técnica

JD100 Sin Rosca / JD200 Roscado
Material: UPVC
Medidas: 1/2" a 2"
Standard: JIS,ANSI,DIN

Solicitar cotización

Medidas Standard ANSI

Size
d - Socket
d - Thread
P
D1
D2
D3
B
L
1/2"
0.840
NPT1/2
0.875
17
35
37
56
129
3/4"
1.050
NPT3/4
1.000
21
35
37
56
129
1"
1.315
NPT1
1.125
28
45
47
71
149
1 1/4"
1.660
NPT1 1/4
1.250
35
52
54
102
173
1 1/2"
1.900
NPT1 1/2
1.375
40
60
62
102
173
2"
2.375
NPT2
1.500
52
73
75
114
211
