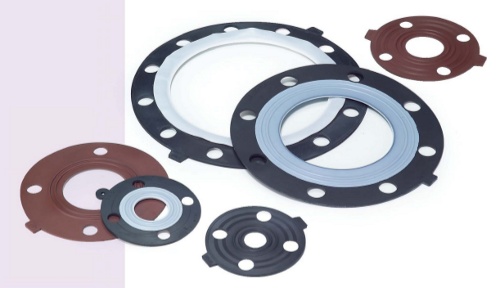

Gasket FG Series

Descripción Técnica

FG100
Material: EPDM, PTFE, VITON
Medidas: 1/2" a 24"
Standard: JIS, ANSI, DIN

Solicitar cotización

Medidas Standard ANSI

Size
D1
D2
D3
"D1"
"D2"
n
e
T
1/2"
18
60.33
86.90
25
37
4
15.8
3
3/4"
22
69.85
96.43
31
43
4
15.8
3
1"
30
79.38
105.95
40
53
4
15.8
3
1 1/4"
40
88.90
117.48
52
65
4
15.8
3
1 1/2"
43
98.43
125.00
55
70
4
15.8
3
2"
54
120.65
150.40
70
84
4
19
3
2 1/2"
69
139.70
175.80
86
102
4
19
3
3"
82
152.40
188.50
100
114
4
19
3
4"
102
190.50
226.60
126
147
8
19
3
5"
127
215.90
252.00
149
171
8
22.2
3
6"
152
241.30
277.40
172
198
8
22.2
3
8"
204
298.45
340.90
225
255
8
22.2
3
10"
254
361.95
404.40
275
305
8
25.4
3
12"
304
431.80
480.60
325
355
12
25.4
3
14"
354
476.25
531.40
375
405
12
28.5
3
16"
404
539.75
594.90
425
455
12
28.5
3
18"
470
575.00
635.00
500
525
16
32
3
20"
520
635.00
699.00
550
575
20
32
3
24"
630
749.00
813.00
650
680
20
35
3
