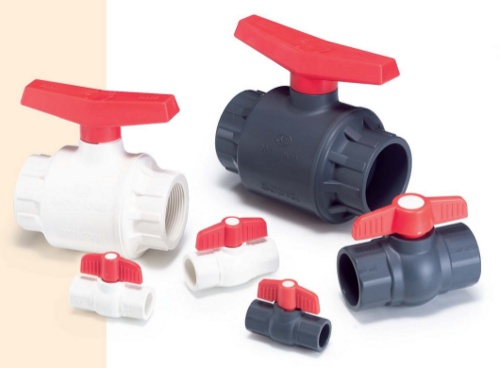

Compact Ball Valve CC Series

Descripción Técnica

CC100 Sin Rosca / CC200 Roscado
Material: UPVC, PP, CPVC, PVDF
Medidas: 1/2" a 6"
Standard: JIS, ANSI, DIN

Solicitar cotización

Medidas Standard ANSI

Size
D1
P
L
D2
H
A
Press
1/2"
0.591
0.875
3.110
1.141
1.850
2.756
222
3/4"
0.787
1.000
3.562
1.427
2.244
3.031
222
1"
0.984
1.125
4.173
1.627
2.402
3.504
222
1 1/4"
1.260
1.250
4.842
2.086
2.598
3.504
222
1 1/2"
1.535
1.375
5.098
2.401
2.913
4.370
222
2"
1.969
1.500
5.925
2.874
3.150
5.472
222
2 1/2"
2.598
1.750
7.638
3.780
5.550
7.48
148
3"
3.071
1.875
9.173
4.331
6.063
9.005
148
4"
3.94
2.250
11.00
5.35
6.7
10.79
148
5"
3.897
3.000
10.393
6.260
6.870
9.251
100
6"
5.118
3.541
14.794
7.696
7.161
12.12
100
