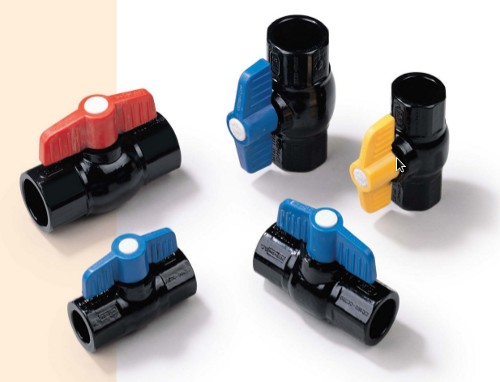

PP Compact Ball Valve CE Series

Descripción Técnica

CE100 Sin Rosca / CE200 Roscado
Material: UPVC, PP, CPVC, PVDF
Medidas: 3/8" a 1/2"
Standard: JIS, ANSI, DIN

Solicitar cotización

Medidas Standard ANSI

Size
D1
P
L
D2
H
A
Press
3/8"
0.354
0.750
2.283
0.984
1.457
1.614
148
1/2"
0.591
0.875
3.110
1.378
1.850
2.756
222
3/4"
0.787
1.000
3.543
1.575
2.244
3.031
222
1"
0.984
1.125
4.134
1.890
2.402
3.504
222
1 1/4"
1.260
1.250
4.764
2.126
2.598
3.504
222
1 1/2"
1.535
1.375
5.000
2.441
2.913
0.984
222
